4-Post car lift - hydraulic - 5000kg - Euro line (JA5001F-E)

European designed 4-Post lift

  • Auxiliary lifters in the runways
  • Solid and reliable
  • Lifting height up to 185cm
  • Ready for alignment

Contact sales:

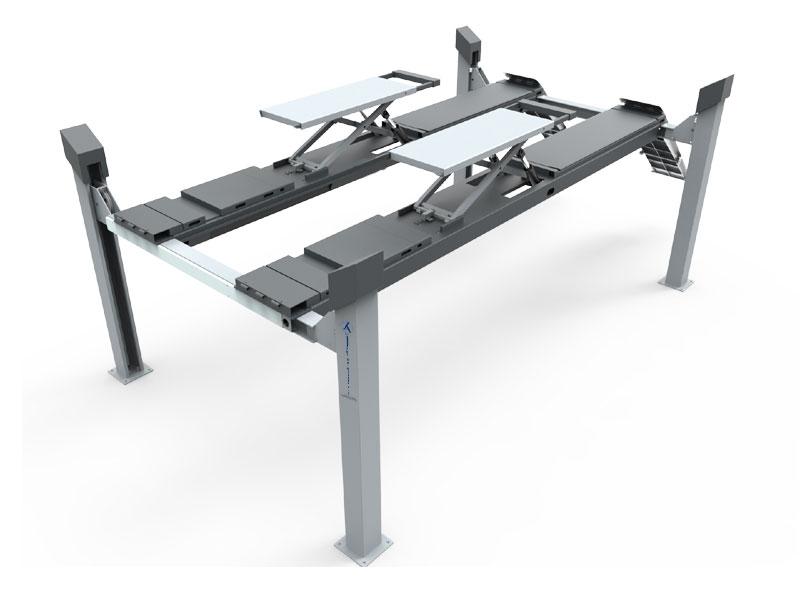

4 Post lift with auxiliary lifters in the runways!

The JA5001F-E 4 post lift is European produced with a 3.5T auxiliary lift in the platforms, which makes the  jacking beam unnecessary. The JA5001F-E is an incredibly reliable lift which is ready for alignment!

High lifting capacity that takes most vehicles

JA5001F-E a model that has been further developed from the 4 Post lift, JA50001F- E has an auxiliary lift in the platforms, and has a maximum lifting capacity of 5T.

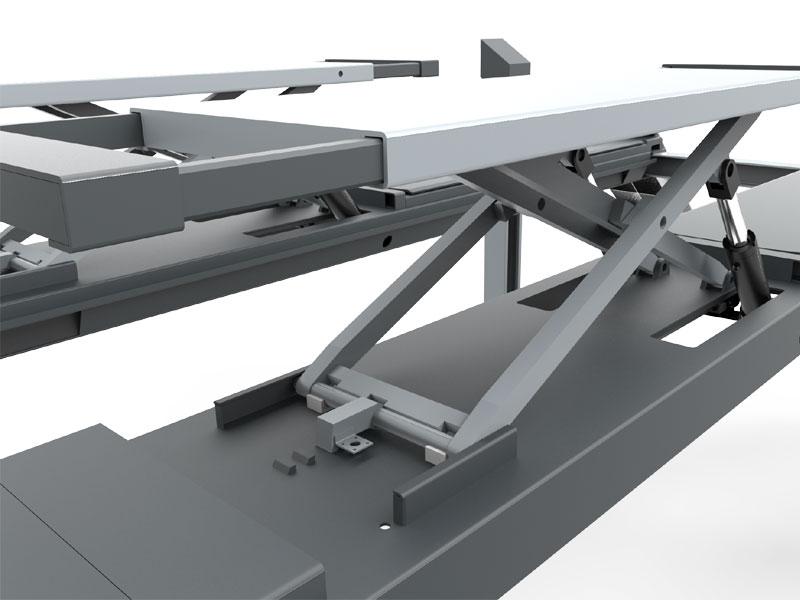

The platform length of the 4 post lift JA5001F-E is a full 5620mm and the auxiliary lift in the platforms has a max. capacity of 3.5T, and lifts easily and quietly to a maximum lifting height of 1890mm.
The lift is easily controlled from the user-friendly control box which is fully automatic, and is easily placed into the safety lock with the "safety lock" button.

JA5001F-E is the obvious choice for a workshop that is looking for the latest product on the market
The 4 post lift that takes all standard cars, as well as large vans, a perfect lift that meets the challenges of a very busy traffic flow workshop.

This lift requires 380V and it uses 10L hydraulic oil ISO 32.

This lift is CE approved as your safety is paramount us

Technical information

  • Technical specifications

    • Electric connection: 380V
    • Motor power: 2.2KW
    • Rise time: 55sec.
    • Lifting time: 45sec.

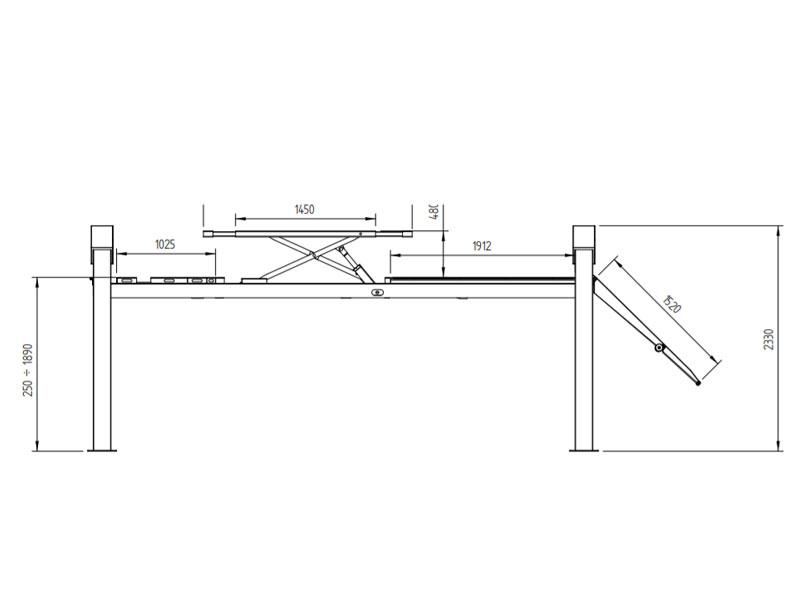

    • Max. lifting height: 1890mm
    • Post height: 2270mm

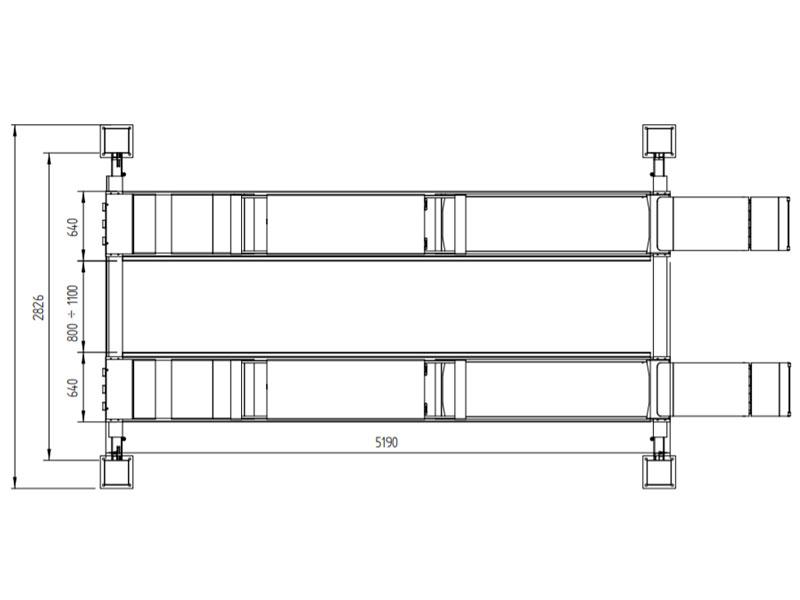

    • Total length: 6452mm
    • Runway length: 5190mm
    • Width between posts: 3000mm
    • Total width: 3478mm
    • Ramp height: 246mm
    • Automatic safety locks
    • Safety valve
    • CE approved
    • Colour: Grey
    • Max. lifting capacity: 5000kg
    • Total weight: 1500kg
  • CE Certificates
